Wall Sandwich Panel Price Polyethylene Metal Roof EPS Foam Sandwich Panel

50mm/75mm/100mm Foam Insulation Fireproof Polyurethane Sandwich Panel for Cold Room/Wall/Roof
  • lead time:

    about 5-15workdays
  • product orgin:

    Xiamen, China
  • shipping port:

    Xiamen, China
  • payment:

    100%TT or LC at sight
  • color:

    seablue white or RAL color
  • products details

Wall Sandwich Panel Price Polyethylene Metal Roof EPS Foam Sandwich Panel


A sandwich panel is one structure made of three layers of material: low density core inserted material in between two relatively thin steel skin layers. This sandwich setup allows to achieve excellent mechanical performance at minimal weight. The very high rigidity of a sandwich panel is achieved thanks to interaction of its components under flexural load applied to the panel: core takes the shear loads and creates a distance between the skins which take the in-plane stresses, one skin in tension, the other in compression. General information on sandwich panel structure, different sandwich core types available and the potential with respect to weight savings is available in the following reference.

sandwich panels

Product parameter

Product name

Factory price fire rated EPS sandwich  panels

Upper Steel Thickness

0.3mm-0.7mm

Lower Steel Thickness

0.3-0.7mm

Core materials Thickness

50/75/100/150/200mm

Surface materials

PPGI/PPGL/GI/AI sheet

Structure

Upper and lower layer: Color steel sheet
Middle: Foam core

Effective  Width

950mm 1150mm for wall, 950mm for roof

Core density

8-25kgs/M3

Recommend Coating

PE/PVDF/SMP/HDP

Surface Finish

Big rib/Flat

Fireproof Grade

B

Conventional color

Ocean blue, White gray or as customer's requirement

Length

20'GP:no more than 5.8 meter/pcs
40'GP/40'HQ:no more than 11.8 meters/pcs

lifetime

15~20 years

Features

Save more construction period , soundproof, energy-saving,environmental friendly

Useage

Large-size factory,workshop,gymnasium,villa etc.

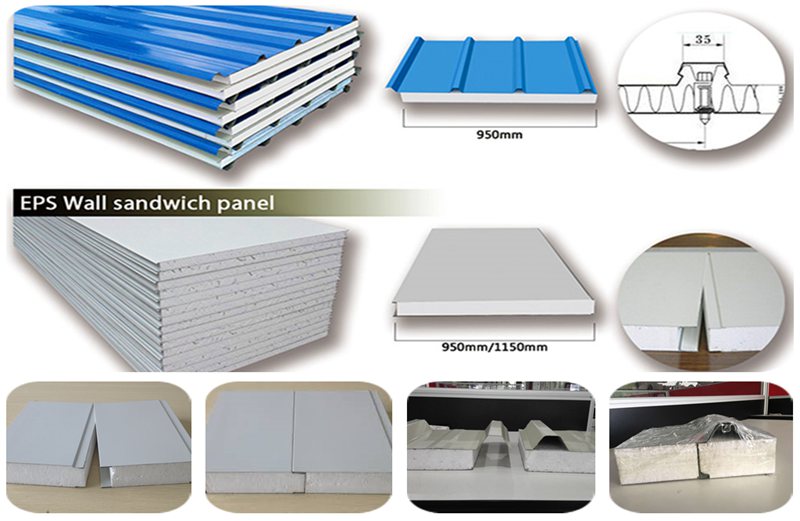

color steel sandwich panels for wall and roof

Applications:

1) sandwich panel used in large industrial plants, warehouses, supermarkets, hospitals, stadiums, cold storage, activities room, buildings plus layer, clean workshop and heat insulation fire place.

2) sandwich plate appearance, bright color, good overall effect, it sets the bearing, thermal insulation, fireproof, waterproof in one, and no two decoration, is a widely used, especially in the construction site of the temporary facilities such as office, warehouse, walls, but also embodies the modern construction site civilization construction,

3) in the fast installation and put into use, the assembly and disassembly, material turnover multiplexing index, have obvious advantages, greatly reducing the construction site temporary facilities, will be indispensable new lightweight construction materials

1)Heat & Fire Insulation;

2)Inflaming Retarding;

3)Easy installation;

4)Excellent price and quality;

5)Light weight.

Product application and joint sites: Various roofs and walls referring to the large size factory buildings, storages,exhibition halls,gymnasiums,workshop,perfab houses,container houses,etc.

Application with sandwich panels for roofService&Support:

Shengqian Group was established in 1998. The company has established large-scale production bases in Xiamen and Zhangpu. And set up multiple subsidiaries. Headquartered in the beautiful Gulf city of Xiamen, it covers an area of 300,000 square meters.

As a national high-tech enterprise, Xiamen Shengqian Steel Technology Co., Ltd. has 6 large-scale production workshops and more than 30 production lines. It has more than 20 years of experience in the steel structure industry. Our main products are: C / Z purlin, foam sandwich panel, glass magnesium sandwich panel, PU sandwich panel, rock wool sandwich panel, steel-bar truss floor deck plate, galvanized deck sheet,roof tile etc.

The company takes Xiamen as the center, radiates the East China and South China markets, and is exported to Europe, America and Southeast Asia. It has been exported to more than 50 countries and regions.

We are always committed to providing the best solutions for customers at home and abroad, and continue to win market favor with value-for-money cost-effective and considerate services.
