TECHNICAL DETAILS

1.Wind Load, Snow Load, Earthquake and Rainfall in local area

2.Length&Width&Eave Height & Roof Slope

3.Single Floor or Multi-floor in the steel structure

4. Clear Span or Multi-span

5. Requirements on brick wall

6. Roof and wall materials' requirements

7. Requirements on type & quantity of window and door

8. Requirements on the natural lighting & ventilation system

MAIN STEEL PART:

1. H section frames,steel columns, beams and wind-proof columns

2. With treatment of one time red-oxide primer painting and two times grey facing painting

SECONDARY STEEL PART:

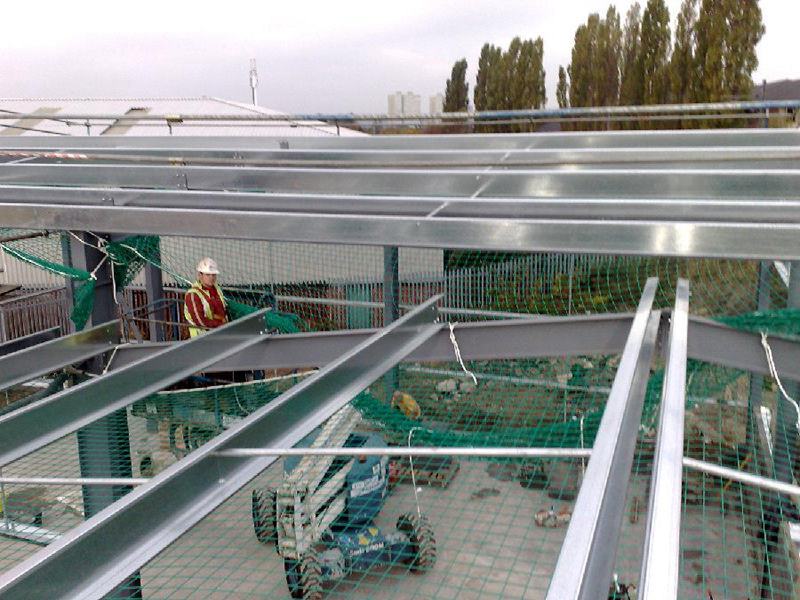

1. Roof & Wall support C/Z Purlin

2. Tie Bar 89*3.0

3. Roof Support & Support between steel columns 20

4. Bracing Bar12

5. Knee Bracing: Angle Steel

ROOF & WALL CLADDING:

1. Roof & Wall Corrugated Single Steel Sheet: 0.3mm-1.2mm

2. Roof & Wall Sandwich Panel Insulated with EPS Foam, Glass wool, Rock wool and PU: 50mm-200mm

3. Transparent Sheet (FRP): 1.0mm-2.0mm

4. Flashings: Made by Color-coated Corrugated Steel Sheet

WINDOW & DOOR:

1. Window: PVC Window or Aluminum-alloy Window

2. Door: Sliding Door or Roll-up Door

FASTENERS:

High-strength Bolt; Common Bolt and Nut; Self-tapping Screws; Foundation Bolt and Nut, ETC

DELIVERY:

1. Lead Time: 30-45 days

2. Loaded in 20GP, 40GP; 40HC; 40OT; 45 HC

3. Package: Standard Package

OTHER OPTIONAL ACCESSORIES:

1. Gutter

2. Downpipe

3. Brick Wall: The height of brick wall is depended on client's need

4. Ventilation System

5. Lifting Height of Crane: >6m

6. Lifting Weight of Crane: 3-30T
